TC-CC-1204 4 Channels Video Capture Card

时间:2020-02-02   访问量:4594

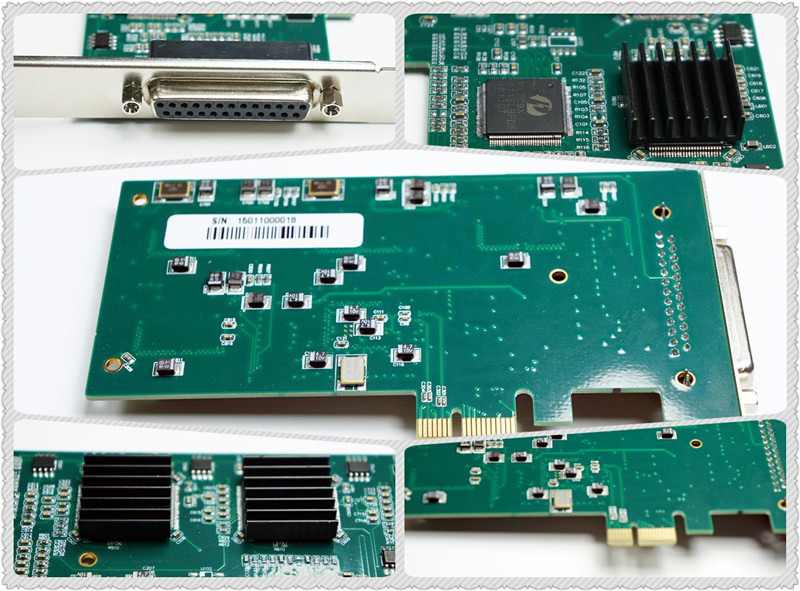

TC-CC-1204 4 Channels Video Capture Card

TC-CC-1204  can support standard PCI-E slot and provides the broadcast image effect, a card 4 channels, built-in high performing audio capture engine provides the high quality audio effect.   TC-CC-1204  supports all the captures and streaming media compressed tools and it is best suited for educational, training, industrial, medical, scientific, and security applications.



.jpg



ka2





.jpg



Applicationvideo network broadcast
streaming media
video conference
VOD system
distance education
remote control
file maintenance, etc



Product featureSupport a card four channels, support 64bit PCI-E
Adopt the newest 9Bit acquisition chip
High performing audio acquisition function, support 32, 44.1 and 48KHz sampling
The newest AV Stream WDM driven architecture
Support the newest WMV9, Real10, MPEG4, Flash etc video format
2-D Y/C Adaptive comb filter, self-adaptive to comb filter function
High performing DMA technology, provide high efficient Overlay function
Collect 30pfs and D1 uncompressed picture, and not take up CPU resource
Support a high resolution of 720x576
Fully support software development of the MS Directshow
Support single multi-channel long time running
Support multiple formats including: PAL, NTSC, SECAM
Video AGC automatic gain control
The brightness, contrast, chroma and gray can be real-time adjustable
Product specificationStandard analog video input (BNC,CVBS)
Standard S-Video terminal input (DIN4)
Unbalance analog audio input
